X-NetStat 6.0 Documentation
Last Revised: May 2021
|
|
|
Main Window

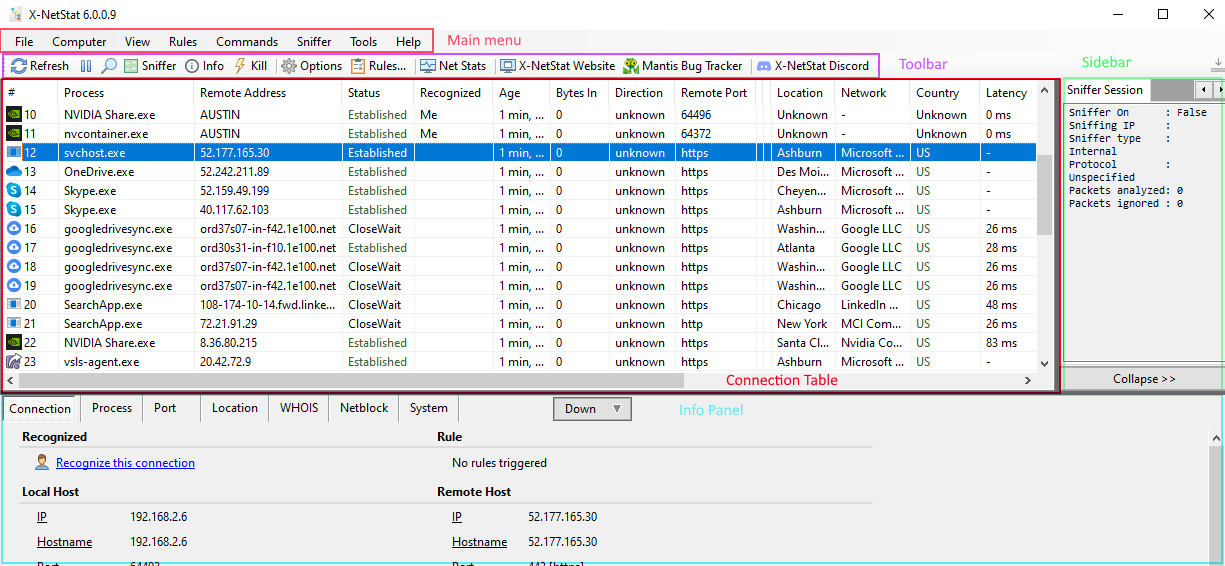

An overview of X-NetStat's main window.
 |
Toolbar - Second from top is the toolbar. It provides quick access to the most important features of X-NetStat.
Connection Table: The core of X-Netstat. This is where connections are displayed, one per row.
Click a column header once to sort it.
Click-and-drag a column header to re-order it.
Right-click a connection to see the Context Menu.=
Sidebar: A collapsable panel docked to the right of the Connection Table. It contains 3 tabs: Event Viewer, Vital Stats, and Packet Sniffer Session.
Event Viewer: Similar to the Windows Event Viewer, this shows all the current logged events in X-NetStat. Choose a category on the dropdown to filter.
Vital Stats: Contains performance and debugging information on the current X-NetStat session.
Packet Sniffer Session: Contains status, diagnostic, and performance information about the Packet Sniffer.
InfoPanel : At the bottom of the screen is the InfoPanel. It shows detailed information on the currently selected connection. See InfoPanel.
Status bar: At the very bottom is the status bar. It shows current operation and progress, time of last refresh, address information, etc.
